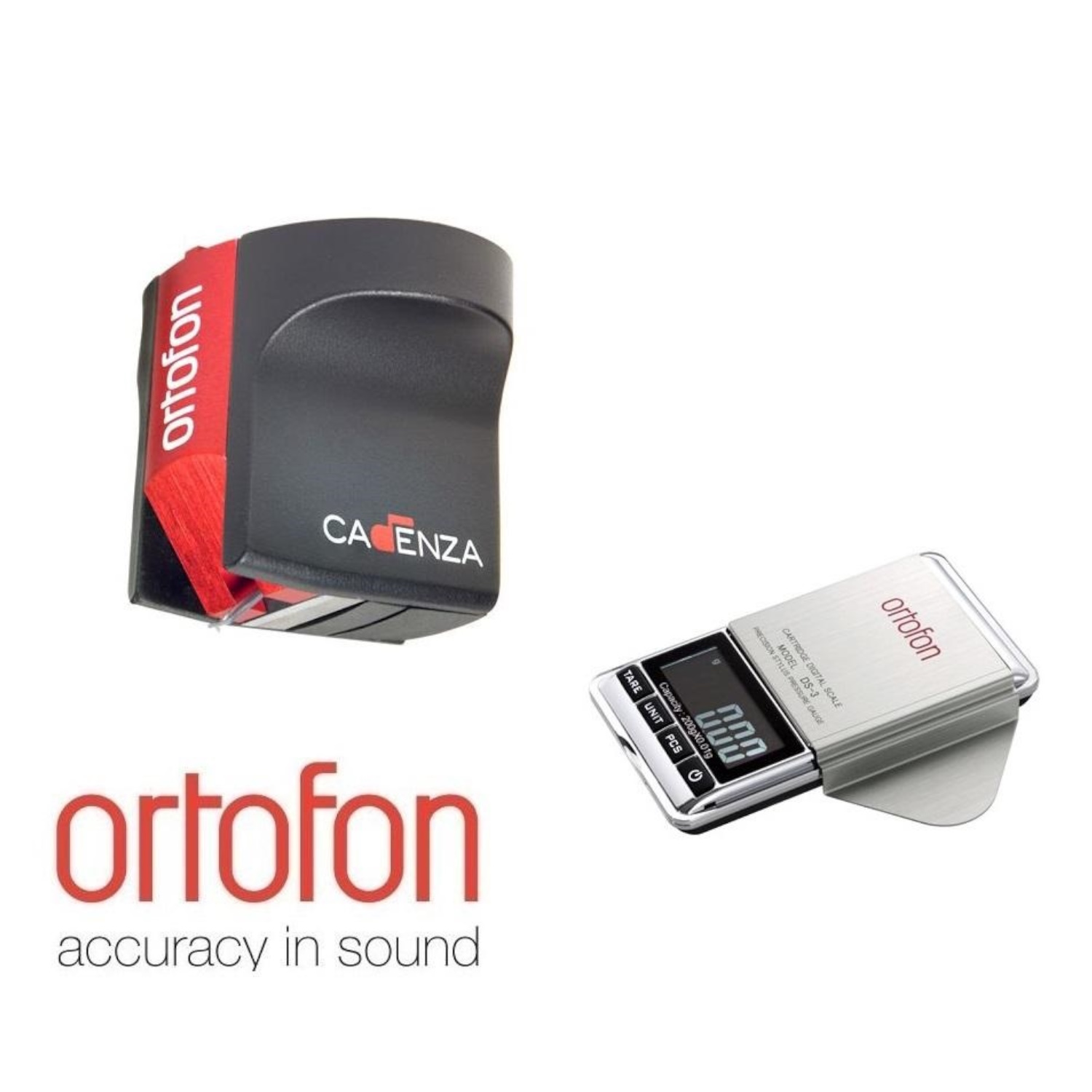

Ortofon Cadenza Red + Ortofon DS-3 SET

Popis

• Output voltage at 1 kHz 5 cm/sec 450 ?V


• Channel balance < 1,5 dB


• Channel separation at 1 kHz > 23 dB


• Channel separation at 15 kHz > 15 dB


• Frequency range at -3 dB 20 Hz - 50 kHz


• Frequency response 20 Hz - 20 kHz -3


• Tracking ability at 315 Hz at recommended tracking force *) 80 ?m


• Compliance, dynamic, lateral 12 ?m/mN


• Stylus type Nude fine line, Al. cantilever


• Stylus tip radius r/R 8/40


• Tracking force range 2,2-2,7 g (22-27 mN)


• Tracking force recommended 2,5 g (25 mN)


• Tracking angle 20?


• Internal impedance, DC resistance 5 Ohm


• Recommended load impedance 50-500 Ohm


• Cartridge body material Stainless steel Aluminium


• Cartridge colour Red/Black


• Cartridge weight 10,7 g
